IBC Cage Frame Welding Machine with 50sec/pc Efficiency 4 Sets MF DC Power Source and Automatic Mechanical Arm Unloading

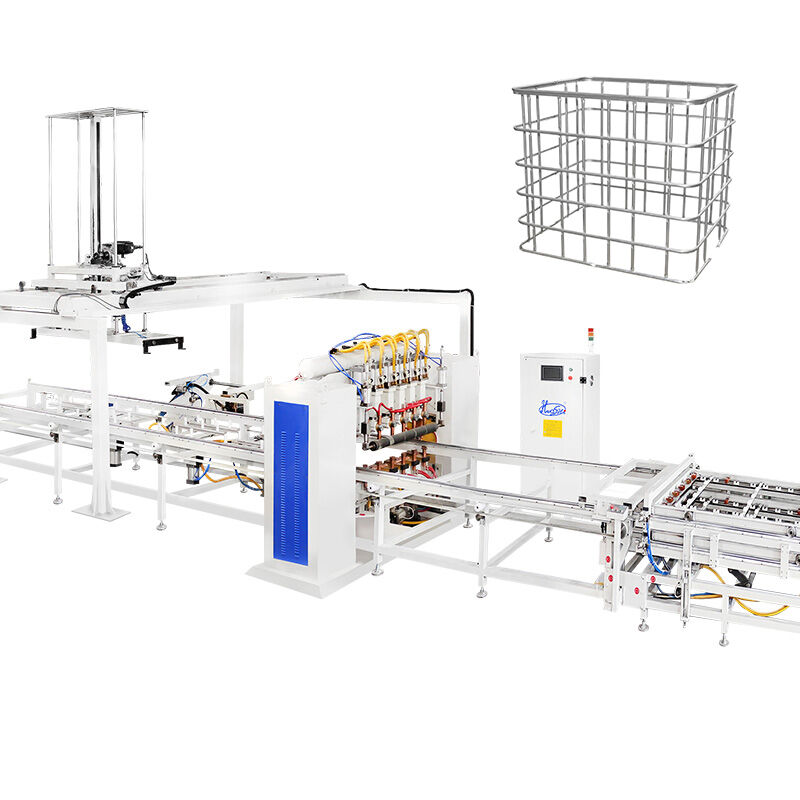

Hwashi IBC Cage Frame Automatic Welding Machine features a reinforced gantry structure with high rigidity and stable operation. The welding system utilizes medium frequency inverter power supply for electricity efficiency and energy savings.

The machine is equipped with 6 welding heads and 4 power supply systems. Each welding point's current can be independently adjusted to ensure reliable weld quality.

• Welding Efficiency: 50 seconds per piece
• Welding Source: 4 sets of MF DC Power Source
• Feeder Platform Option: Single Layer or Double Layer
• Unloading System Option: Manual Unloading or Automatic Mechanical Arm Unloading

Production Capacity: 50 seconds per piece

Four sets of MF transformers control 6 welding electrodes to ensure quality for each welding spot. The two-side piano-type welding style accelerates the welding process, completing each metallic grid mesh in approximately one minute.

Upper and lower air cylinder design ensures flat welding position. Screw-designed welding electrodes enhance durability.

Features 4 sets of MF DC power sources for simultaneous 6-spot welding. Double layer fixture feeder allows material loading during welding operations.

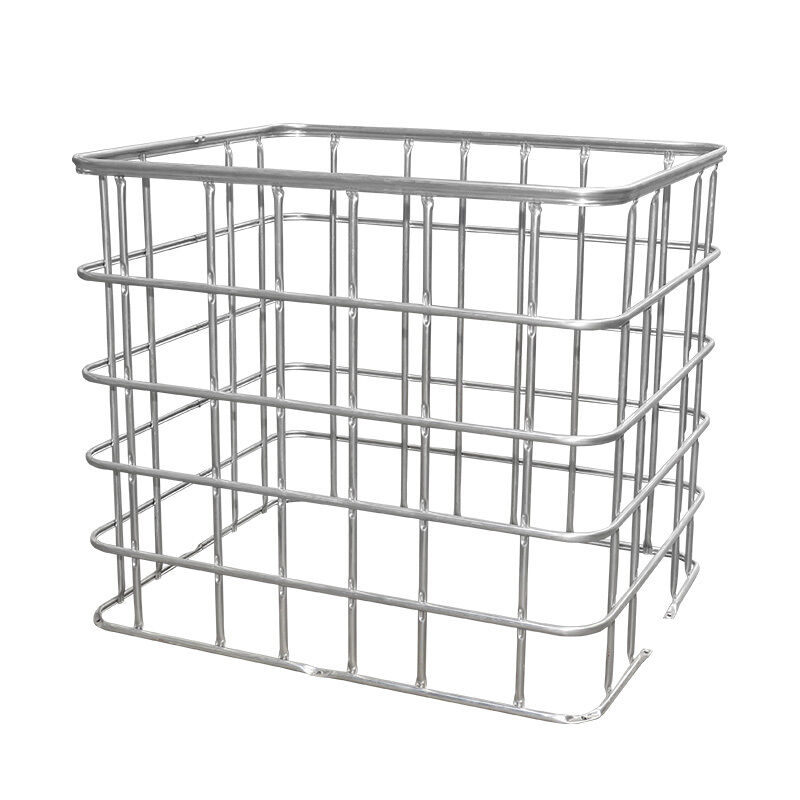

The machine welds tubes into flat mesh type with strong, reliable welds. Complete welding process takes approximately 60 seconds.

Processed as a complete unit to ensure high bending precision, stable operation, and maximum efficiency.

Transforms flat mesh into square frames in 20-25 seconds.

• CNC processed bending beam ensures precise bending angles
• Each mold adjustable upward/downward by 3mm for increased bending range
• 120-degree mold design creates smooth bending angles

Rectangle-shaped machine frame with thicker steel columns and door-shaped cover panels for maximum stability.
